This is rough galvanized steel wire with 10% zinc-aluminum alloy developed for use exclusively in gabion mat`s cover net area.
Features of rough galvanized steel wire:
- High friction wire surface through a special plating process.
- It ensures safety during gabion mat construction work and safe use of waterfront areas after the completion of work.
- Has a highly corrosion resistance structure for more than twice the corosion resistance of conventional wire.
- Offering durability several times greater than normal wire.
| Product name | Code | Diameter | Diameter tolerance | Tensile strength | Elongation | Coating weight | Aluminum concentration |
|---|---|---|---|---|---|---|---|
| mm | ±mm | N/mm² | % | g/m² | % | ||
| New Ganbaru Z Techno-Sarf |
N50AZR | 4.00 | 0.10 | 290 or more | 10 or more | 500 or more | 10 or more |
| 5.00 | 0.12 |
This wire used in gabion mat`s other than cover net area.
This product was developed to preserve a long life even in punishing environments of quick corrosion for fences and gabion mats in industrial zones and coastal areas.
We combined the strength of aluminum with the protective capabilities of zinc by applying and zinc alloy plating to realize the best durability and workability.

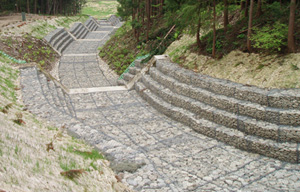

Right after the construction
1 year after the construction
| Product name | Code | Diameter | Diameter tolerance | Tensile strength | Elongation | Coating weight | Aluminum concentration |
|---|---|---|---|---|---|---|---|
| mm | ±mm | N/mm² | % | g/m² | % | ||
| Ganbaru Z | 300AZ | 3.20 | 0.90 | 290 or more | 10 or more | 300 or more | 10 or more |
| 4.00 | 0.10 | ||||||
| 5.00 | 0.12 | ||||||
| 6.00 | 0.12 | ||||||
| 8.00 | 0.12 | ||||||
| 9.00 | 0.12 |
*The wire diameters shown above differ in special order products.
